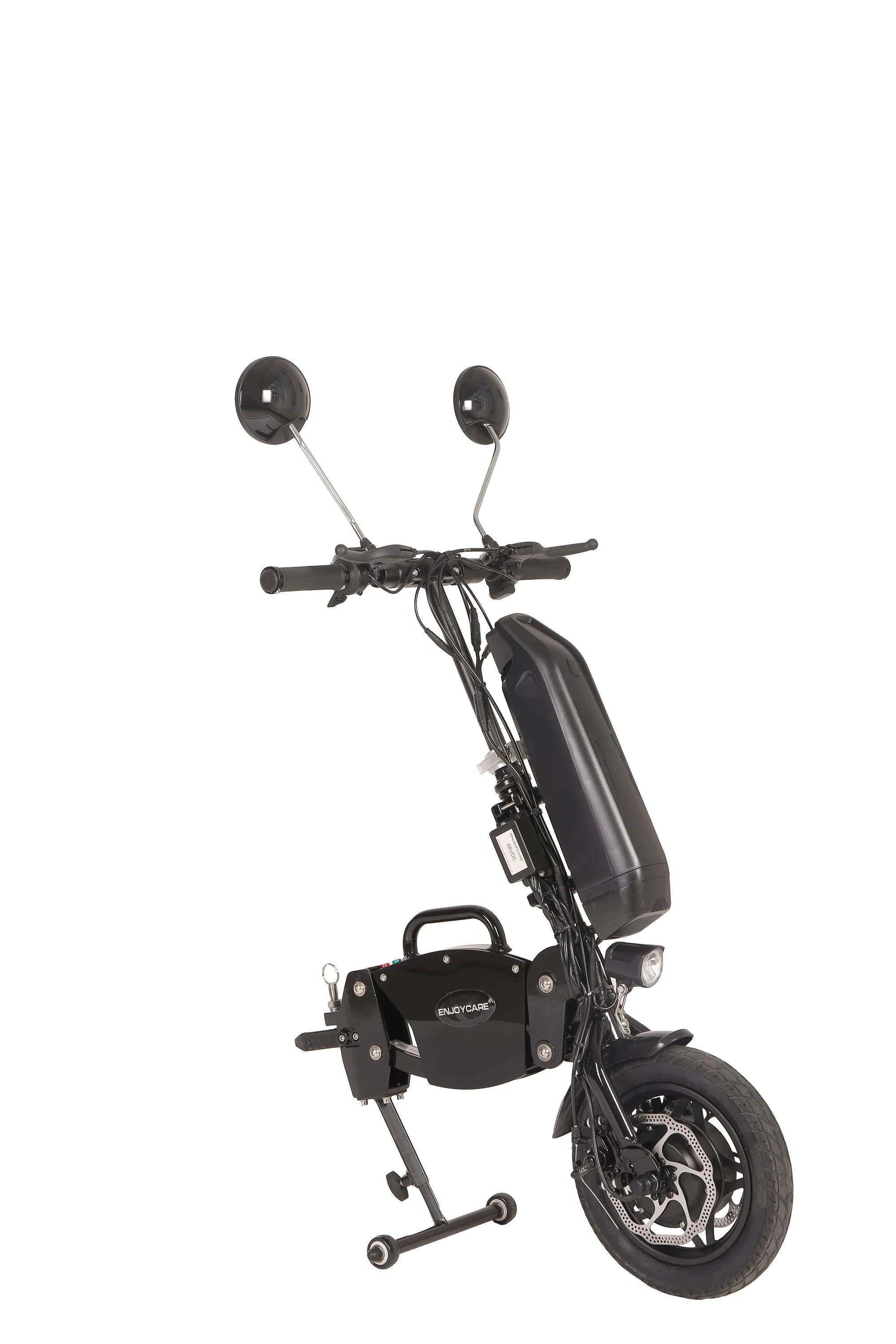

Electric Tractor for Wheelchair Handbike
Model EPW61-K3S , new products developed in 2020 after spending one year . It is a electric tractor for manual wheelchair made lithium battery , motor , smart controller, actuator , ect , easy to attach to or seperated from the manual wheelchair . The manual wheelchair will be updated to elec......
Send Inquiry
Product Description
Model EPW61-K3S , new products developed in 2020 after spending one year .
It is a electric tractor for manual wheelchair made lithium battery , motor , smart controller, actuator , ect , easy to attach to or seperated from the manual wheelchair . The manual wheelchair will be updated to electric wheelchair, and people will get more mobile and free , enjoy fresh air ourside without help from others
With LCD display , which shows battery volume , speed , distance covered , whatsmore , max speed can be set by operating on the display .
Light make it possible to run at night time . To read more detail spec , please refer to the following :
Would like to share the wonderful details with pictures

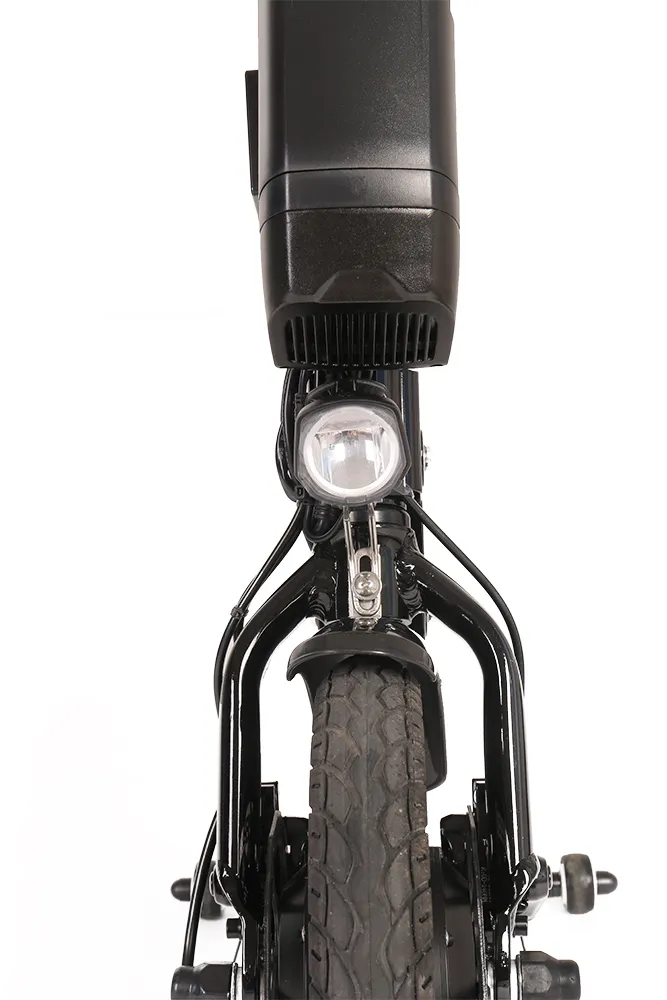

1) LED headlight

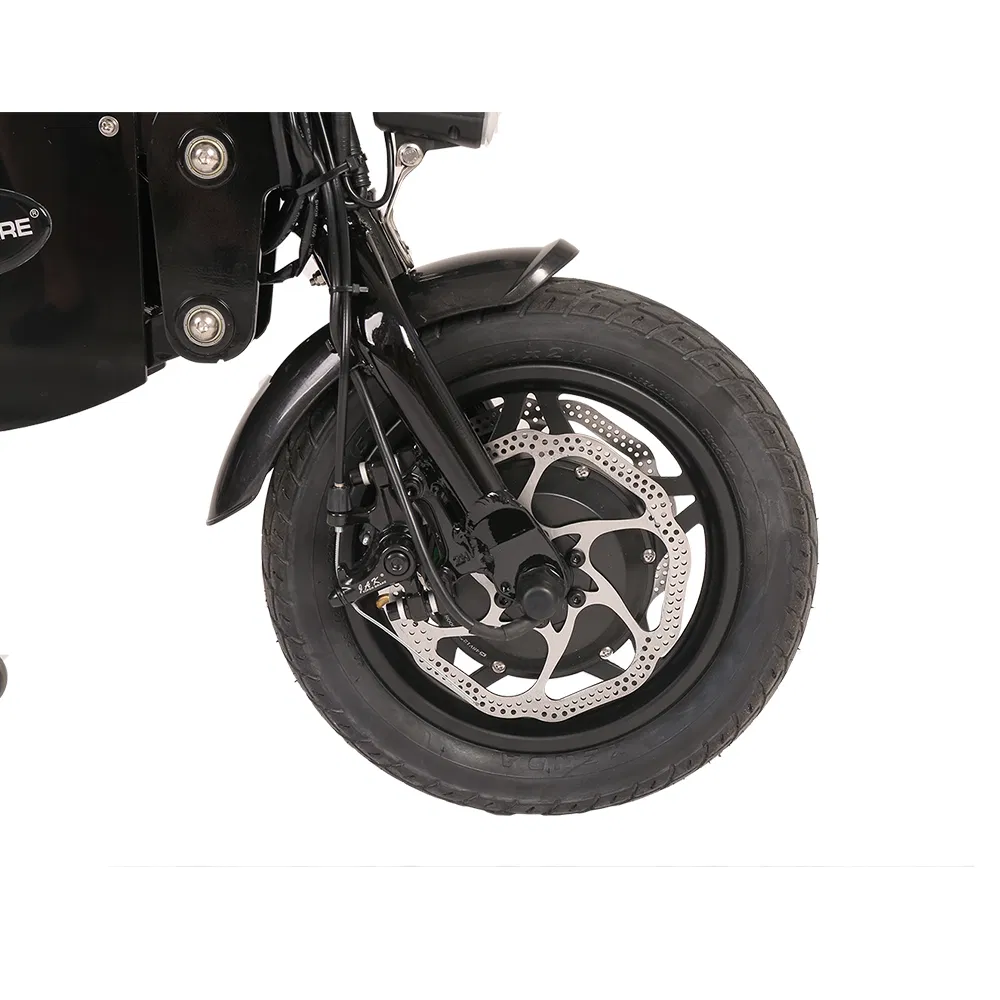

2) disc brake make driviing safer , hub brushess motor in the front wheel

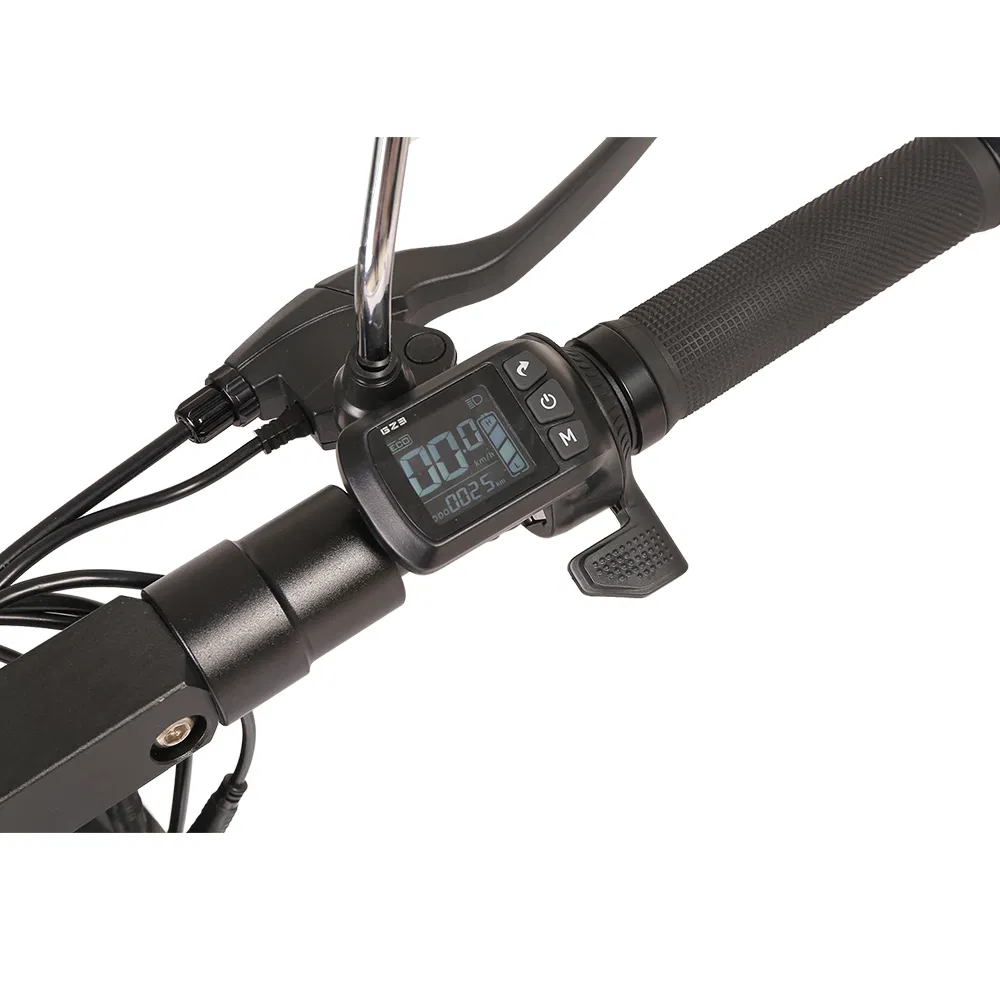

3) LCD display to see battery volume , speed, switch on head light ,ect

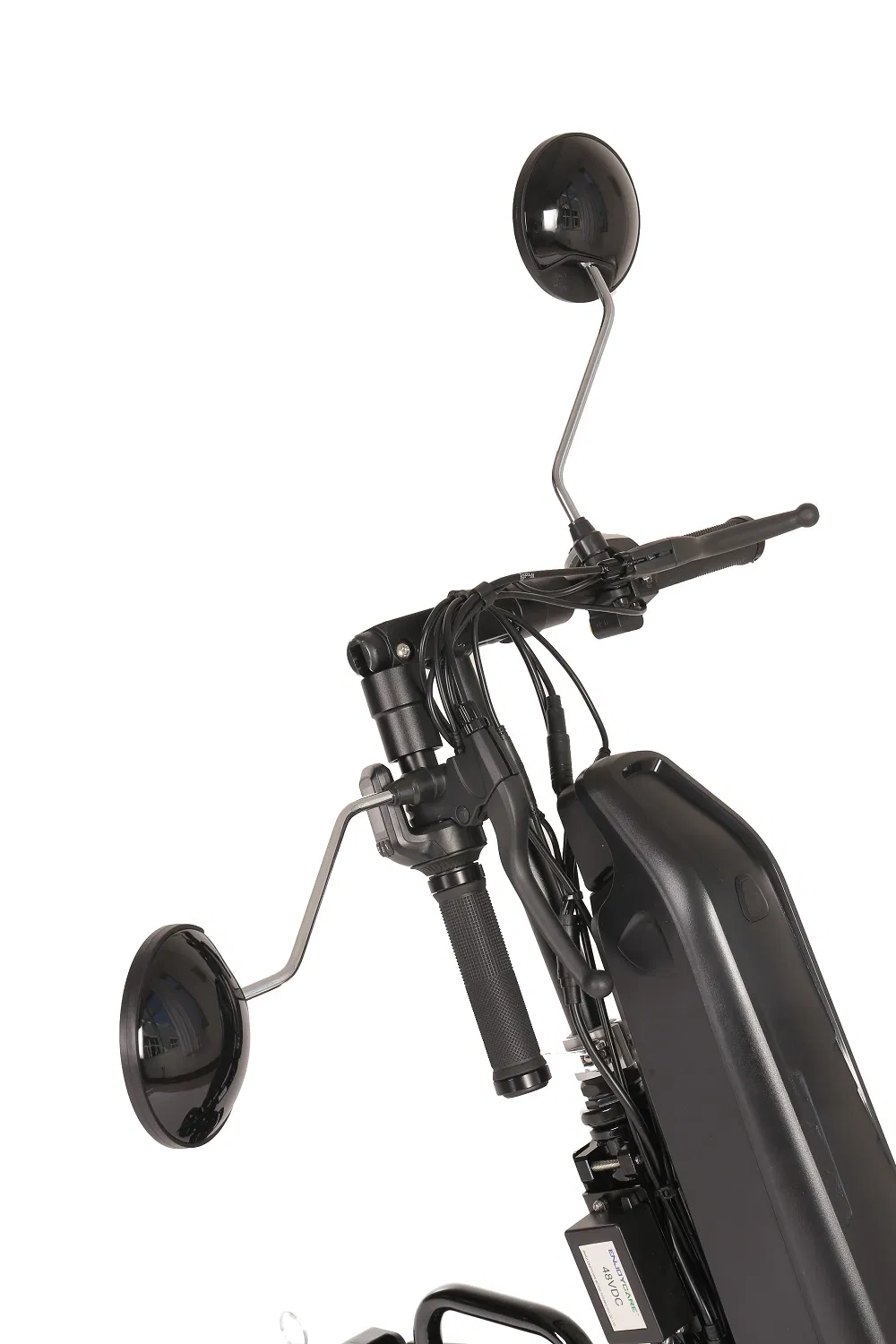

4) Foldable handlebard

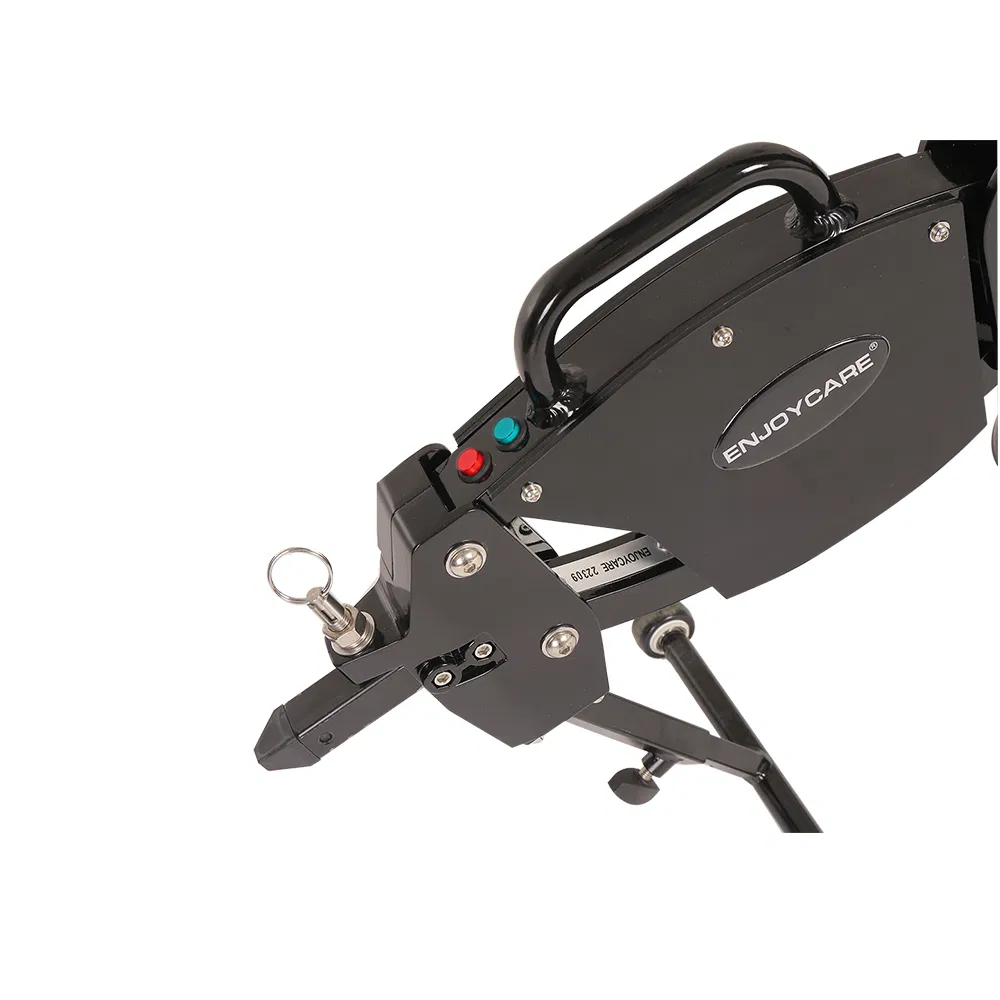

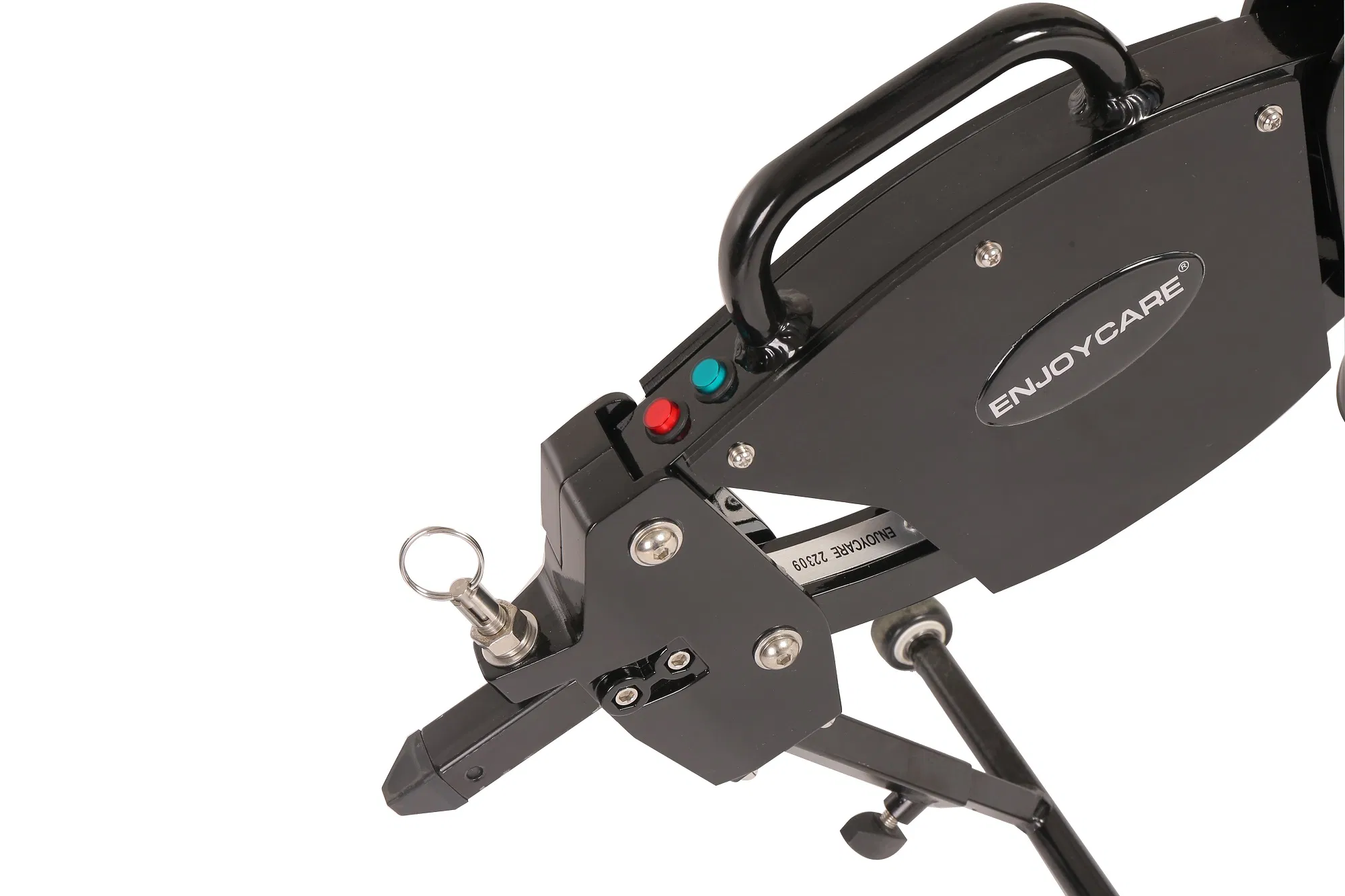

5) Actuator under the side cover make it easy to connecting and disconnecing easier

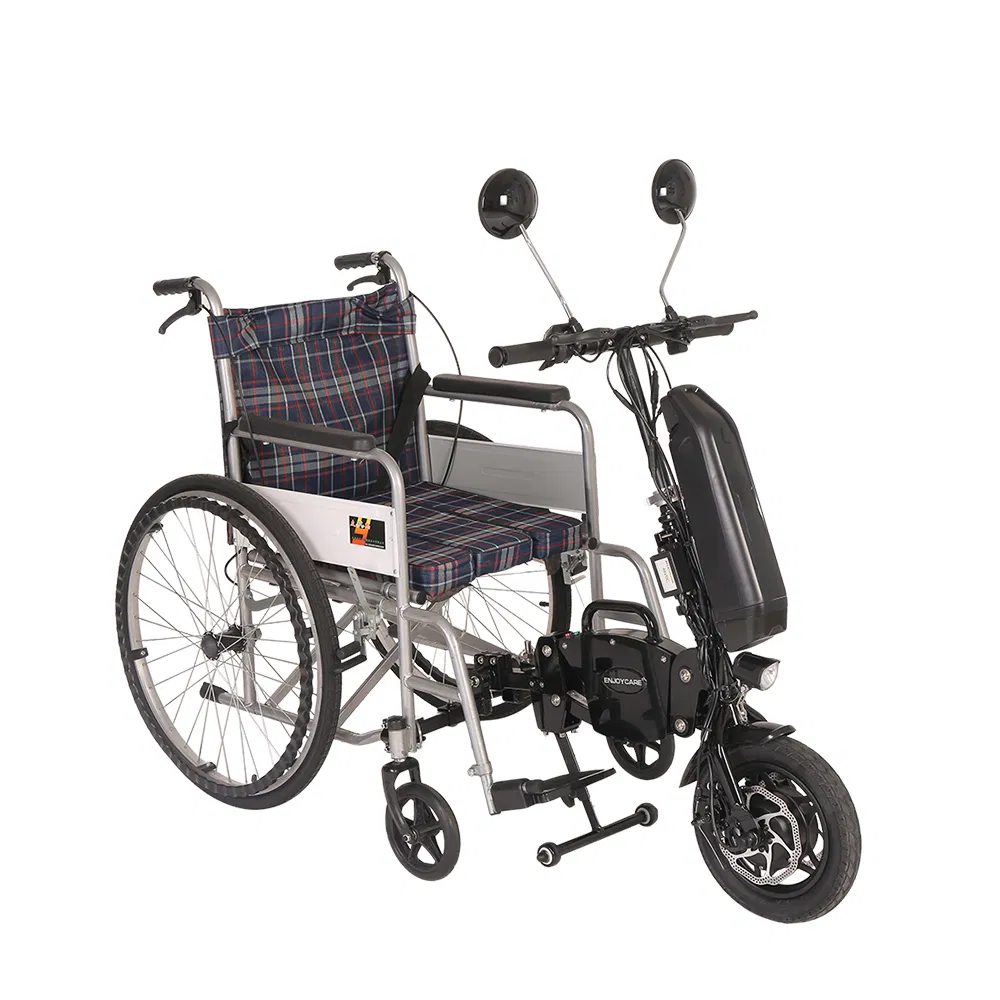

6) see the attached electric tractor and mannual wheelchair when they are connected
It is a electric tractor for manual wheelchair made lithium battery , motor , smart controller, actuator , ect , easy to attach to or seperated from the manual wheelchair . The manual wheelchair will be updated to electric wheelchair, and people will get more mobile and free , enjoy fresh air ourside without help from others
With LCD display , which shows battery volume , speed , distance covered , whatsmore , max speed can be set by operating on the display .
Light make it possible to run at night time . To read more detail spec , please refer to the following :
| Specification for Electric Tractor for Manual Wheelchair | |
| overall dimensions | 92*77*62 CM |
| folded dimension | 87*60*33 CM |
| Wheel size | 12 inch |
| Motor | 48V 250W brushless hub motor |
| Controller | Smart Controller |
| Battery | 48V 13AH Lithium Battery |
| Display | LCD display can show speed , battery volume, trip, DOD, and has button to control front light as well as button to set four different speed level , i.e slow , middle , fast and non speed |
| Charger | 48V 2A |
| Throttle | thumb throttle |
| Light | With front LED light |
| Brake | Disc Brake |
| Charging Time | 5 to 6 hours |
| Range | 45km |
| Max Speed (forward) | 20 km/h |
| Max Speed (backword) | 4 km/h |
| N.W | 15.8 KGS w/o battery , 19 KGS with battery |
| G.W | 23 KGS |
| Packing Size | 97*72*30 CM |
Would like to share the wonderful details with pictures
1) LED headlight
2) disc brake make driviing safer , hub brushess motor in the front wheel
3) LCD display to see battery volume , speed, switch on head light ,ect

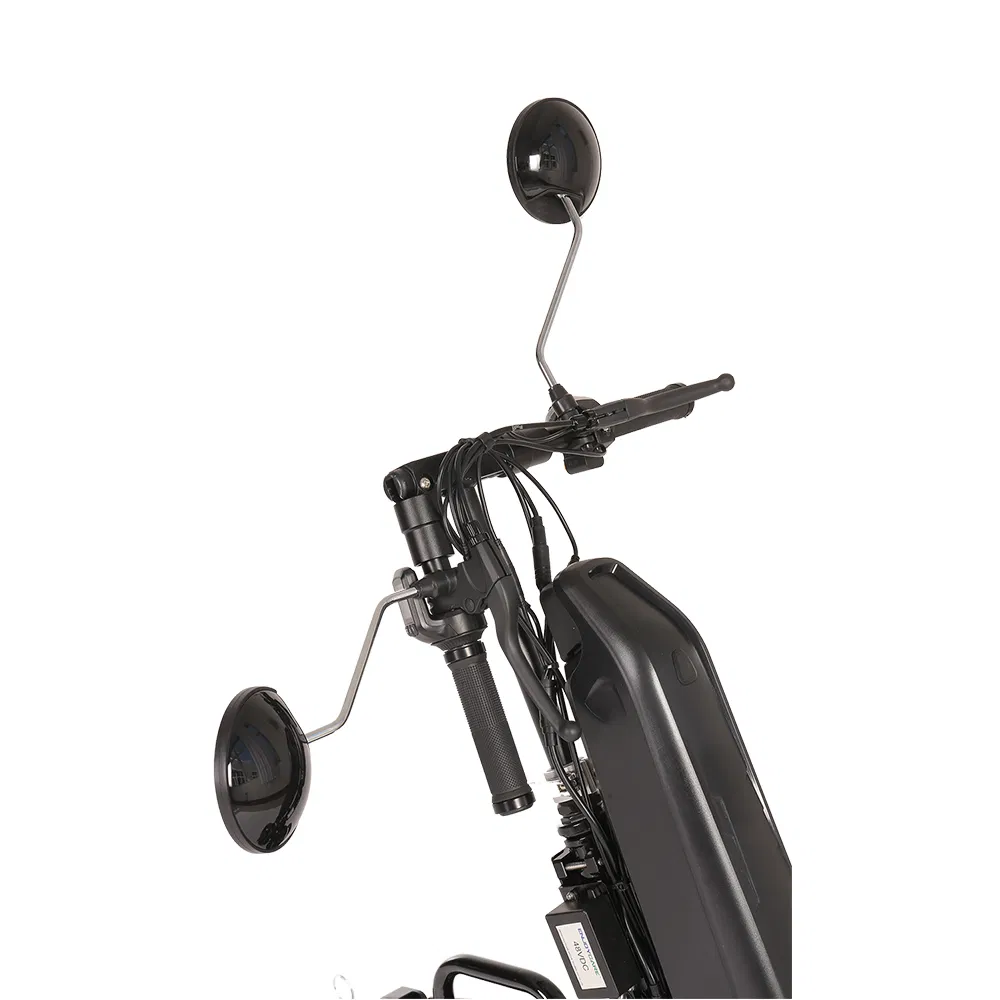

4) Foldable handlebard
5) Actuator under the side cover make it easy to connecting and disconnecing easier

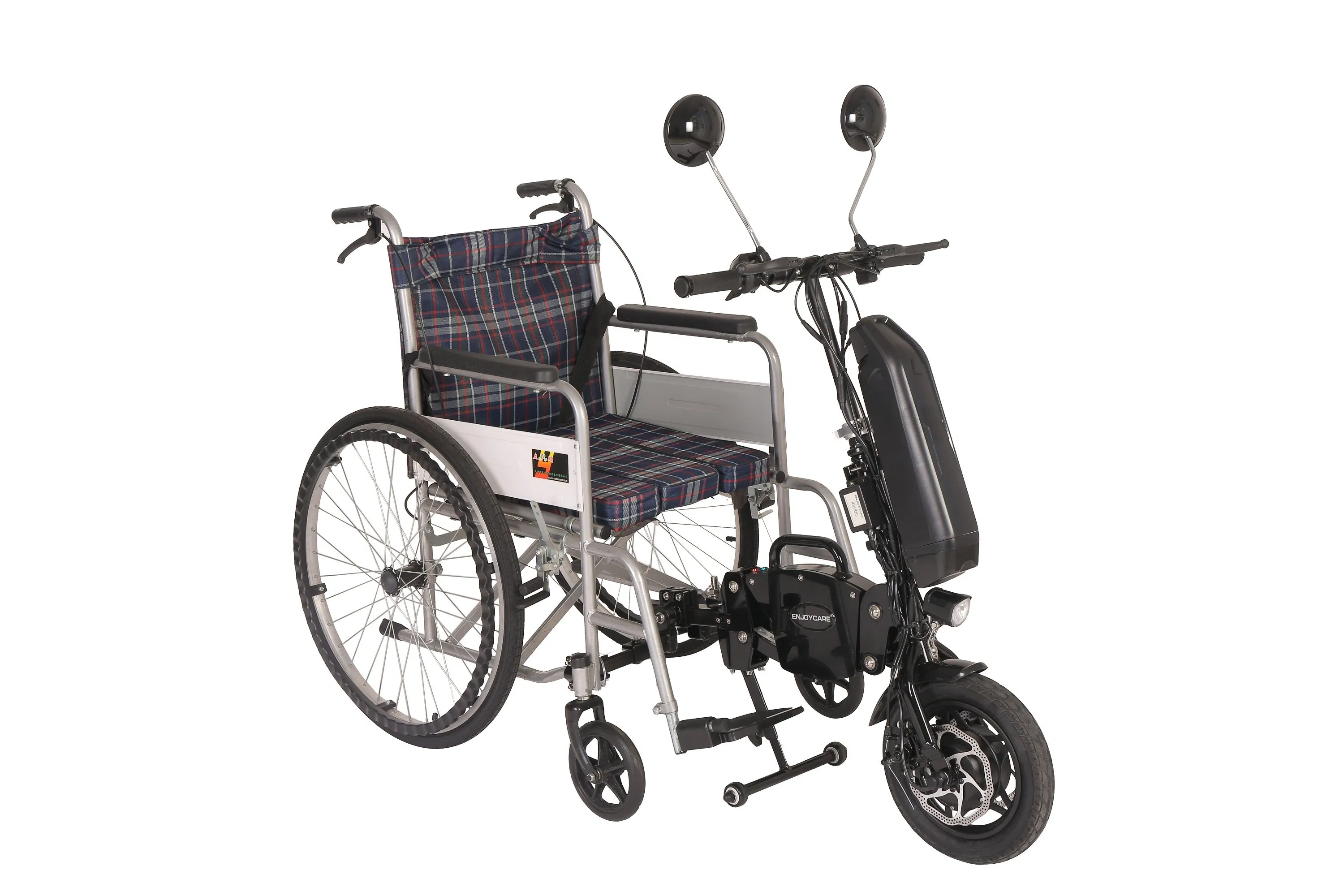

6) see the attached electric tractor and mannual wheelchair when they are connected
