Product Description

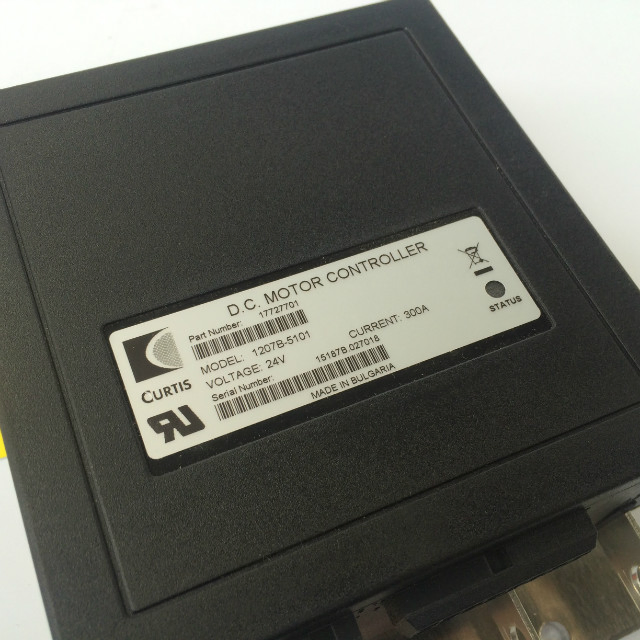

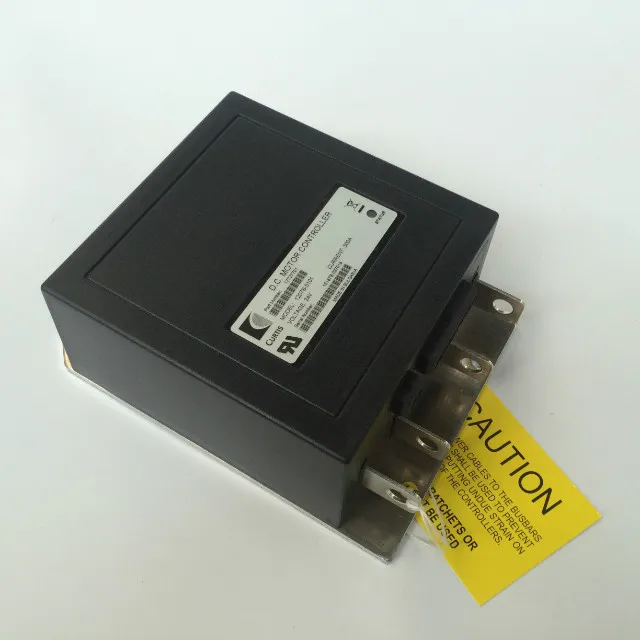

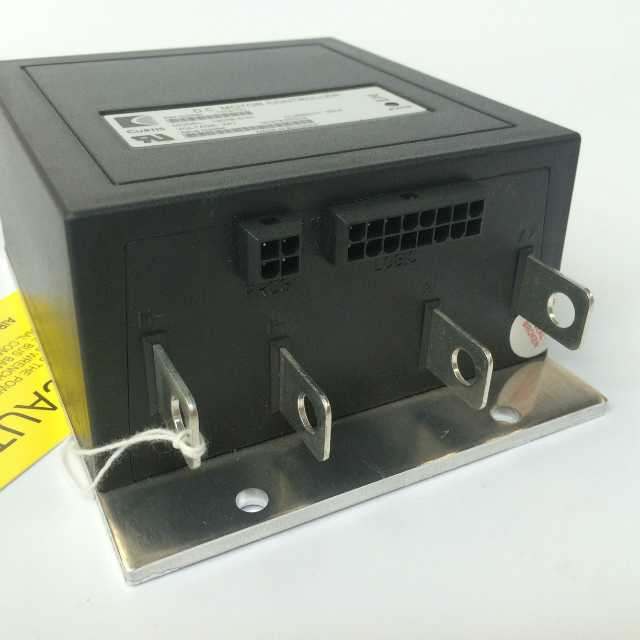

Curtis motor controller 1207B-5101

Product Name	Curtis Controller
_{Model Number}	1207B-5101
Voltage	24V
Current	300A
Applied Model	Pallet truck,walkie fork,sweepers

Curtis PMC 1207B programmable motor speed controllers are the latest upgraded version of popular 1207A controllers. The Curtis 1207B programmable motor speed controller provides efficient, cost-effective, and simple-to-install control for a variety of small electric vehicles. Typical applications include walkie fork/pallet trucks, mini personnel carriers, and sweepers. The microprocessor-based logic section combined with a proven MOSFET power section gives the 1207B controller high power and advanced features in a simple, compact package.

Specification:

. Nominal input voltage 24 V

. Maximum operating voltage 30 V

. Overvoltage point 33 V

. Minimum operating voltage 16 V (= undervoltage point)

. Electrical isolation to heatsink 500 V ac (minimum)

. PWM operating frequency 15 kHz

. Controller Weight: 1.1 kg

. Controller Dimensions: 122 × 165 × 66 mm
Curtis 1207b-5101 Model 24V 300A Motor Speed Controller

Curtis 1207b-5101 Model 24V 300A Motor Speed Controller

Packaging & Shipping

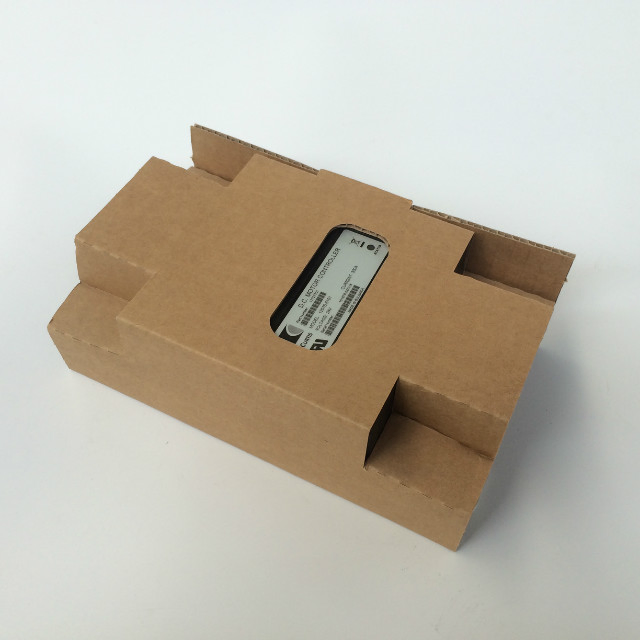

Package:Normally we use the standard exporting packaging , we also can according to clients' request .

Shipping:For sample or samll quantity,the item will be sent in 48 hours after the payment confirmed,

through an expedited service (Fedex, DHL, TNT, UPS or EMS),tracking number will be available

For large quantity,the goods will be send in 10-25 days by sea or air
Curtis 1207b-5101 Model 24V 300A Motor Speed Controller

Company Information
Curtis 1207b-5101 Model 24V 300A Motor Speed Controller

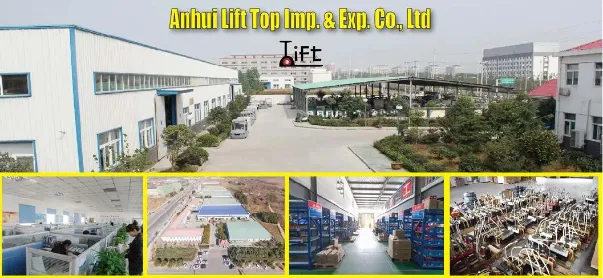

Anhui Lift Top Imp. & Exp. Co., Ltd is located in Hefei city, we specializing in spare parts of material handling equipment, forklift and golf cart for more than 16 years experience. Product categories include controlling system, drive system, transmission system, hydraulic system, and product variety is more than 5000 relating to controllers, motors, contactors, connectors, sensors, battery charger etc. We have developed to the top supplier for fokrlift parts in the past years. And the parts we offer can meet the request of different brands forklifts in the market,such as TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.
